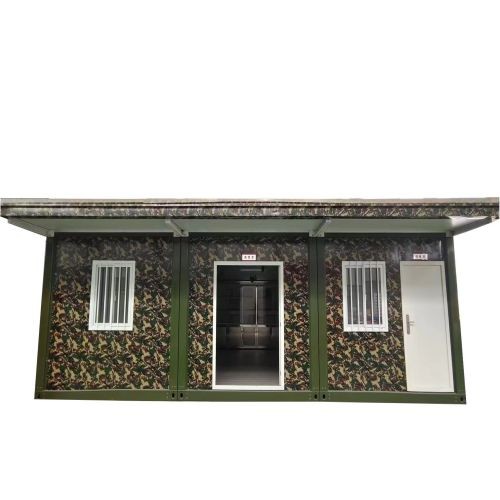

In the realm of temporary accommodations, our modular container steel structure camp offers versatility, durability, and portability. Designed to be adaptable to various scenarios, this camp provides a robust and reliable solution for temporary housing needs in different environments.
Key Features:
Versatility: Our modular container camp is designed to be adaptable to multiple scenarios, including disaster relief efforts, construction sites, remote work camps, and temporary housing projects.
Sturdiness: Constructed with high-quality steel materials, our camp offers exceptional structural strength and stability, ensuring a safe and secure living environment for occupants.
Durability: Engineered to withstand harsh environmental conditions, our camp is resistant to corrosion, erosion, and wear, ensuring long-lasting performance in challenging environments.
Portability: Featuring a modular and detachable design, our camp can be easily transported to different locations and reassembled as needed, providing flexibility and convenience for temporary housing solutions.
Customization: Our camp can be customized to meet specific requirements, including layout configurations, interior amenities, and additional features tailored to the needs of occupants.
Ease of Assembly: With prefabricated components and simple assembly procedures, our camp can be quickly set up on-site, minimizing downtime and disruption to operations.
Cost-Effectiveness: Offering a cost-effective alternative to traditional construction methods, our camp reduces overall project expenses while delivering exceptional performance and value.
Applications:
Disaster relief shelters
Construction site accommodations
Remote work camps
Temporary housing for events and festivals
Military operations and field deployments
Conclusion:
Our versatile, sturdy, and durable modular container steel structure camp provides a reliable solution for temporary housing needs in various scenarios. With its adaptability, sturdiness, portability, customization options, and cost-effectiveness, this camp offers a flexible and convenient accommodation solution for a wide range of applications, ensuring comfort, safety, and satisfaction for occupants.
| Standard Quick Assembly Container House Datasheet |
Product Specification:
3-meter standard container | Length(mm) | 5950(5730) |
| Width(mm) | 3000(2800) |
| Height(mm) | 2800(2500) |
| Center column | |
| Roof | Flat roof, free drainage |
| Number of floors | ≤3 |
| Design parameters | Service life | 5-8 years |
| Ground live load | 1.8KN/㎡ |
| Roof live load | 0.5KN/㎡ |
| Wind load | 0.6KN/㎡ |
| Seismic degree | 8 |
| Structural | corner column | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof main beam | galvanized cold rolled section steel, t=2.3mm, material Q235B |
| roof sub-beam | Galvanized square steel 5*5, t=1.5mm, radian galvanized square steel 4*6t= 1.2mm material Q235B |
| floor main beam | galvanized cold-rolled section steel, t=2.3mm, material Q235B |
| floor sub-beam | galvanized square steel 4*8 (5), galvanized square steel 8*8 (4) material Q235B |
| Paint | Graphene Powder spraying (Electrostatic spraying) |
| Roof | Roof panel | 0.40mm thick color steel plate, color white gray |
| Ceiling | 0.25mm thick 811 ceiling, color white gray |
| Floor | Decorative surface | |
| basic floor | 18mm sanding board |
| Wall | Thickness | 50mm thick color steel glass fiber sandwich board; The outer and inner plates are made of 0.3mm aluminum plated zinc color steel plate |
| Heat preservation | 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion performance is class A non-combustible |
| Color | white gray PE coating |
| Door | Spec(mm) | Width X height =920*2030 common door |
| Material | Steel door |
| Window | Spec(mm) | Front window: width X height =920*1200; Rear window (standard) : width X height =920*1200; |
| Frame | Plastic steel window single glass |
| Glass | common |
| Electricity | Voltage | 220V~250V |
| Wire | input power wire is 4 square, AC wire is 4 square, socket wire is 2.5 square, lighting switch wire is 1.5 square |
| Circuit breaker | High break Miniature Circuit breaker (32A) |
| Lamp tube | Two sets of circular LED fluorescent lamps |
| Socket | 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A |
Company introduction
As a wholly-owned subsidiary of Wujiang Saima (established in 2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign trade. As one of the most professional prefabricated house manufacturers in south-east China, we provide customers with all kinds of integrated housing solutions.
Equipped with complete production lines, including sandwich panel production machines and steel structure production line, with 5000 square meter workshop and professional staff, we already built long-term business with domestic giants like CSCEC and CREC. Also, based on our export experience in the past years, we are furthering our steps to global customers with best product and service.
As a supplier to overseas customers all over the world, we are very familiar with the manufacturing standards of various countries, such as European standards, American standards, Australian standards, and so on. We have also participated in the construction of many large-scale projects, such as recent 2022 Qatar World Cup camping construction.
